Cameras

IDCamPro can connect to one or more cameras or image sources at the same time. Supported sources are:

Axis or Hikvision camera, using either H.264 streams or MJPEG (the later is recommended as usually image qualitiy for stills is better but there is more network load))
Local webcams (USB or integrated)
HDMI or SDI via Blackmagic Design Decklink devices
NDI sources

Global Settings

Key Explanation

Key	Explanation
Buffer Time	Frames will be stored in a buffer for this given amount of time. Triggers or passings are always received a little delayed, therefore then a recording is triggered frames from the buffer will also be recorded to allow more frames before the event
Manual Recording Duration	When pressing `F8` a trigger is simulated. The time of the recording is defined with this value

Buffer Time

Frames will be stored in a buffer for this given amount of time. Triggers or passings are always received a little delayed, therefore then a recording is triggered frames from the buffer will also be recorded to allow more frames before the event

Manual Recording Duration

When pressing F8 a trigger is simulated. The time of the recording is defined with this value

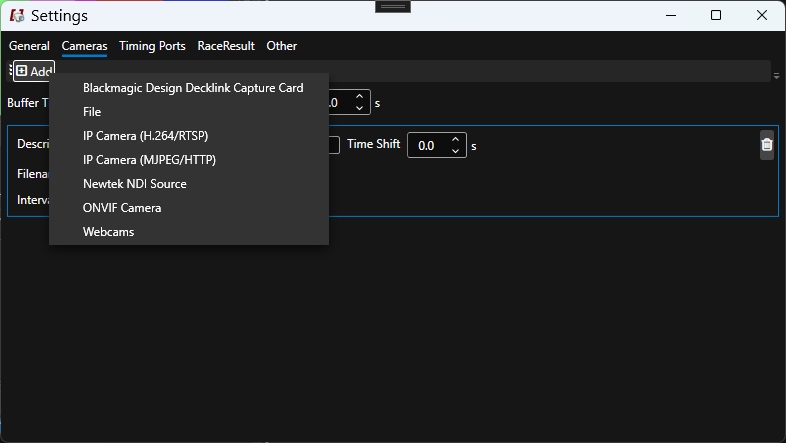

Per-Camera Settings

Key	Explanation
Time Shift	Frames from cameras are most likely a little delayed, also your computer time may not be well synchronized. In order to shift frames and finish crossings better to the matching trigger or passing, you can play around with the time shift. This way the image's received timestamp is shifted accordingly

Key

Explanation

Time Shift

Frames from cameras are most likely a little delayed, also your computer time may not be well synchronized. In order to shift frames and finish crossings better to the matching trigger or passing, you can play around with the time shift. This way the image's received timestamp is shifted accordingly

PreviousRACE RESULT Devices NextCamera Recommendations

Last updated 1 month ago
